Structure Cabling

Structure Cabling of Cable Management

A reliable network is built on a reliable structured cabling system. If the cable system is only designed to accommodate today's head count, flexibility to service other locations when in need will be limited. Therefore, the design should include the maximum number of locations that can be physically accommodated. With the rapid change in networking technologies, any cabling design based on an application or vendor's equipment will not be cost effective in the life cycle of the system.


Self Photos / Files - 擷取

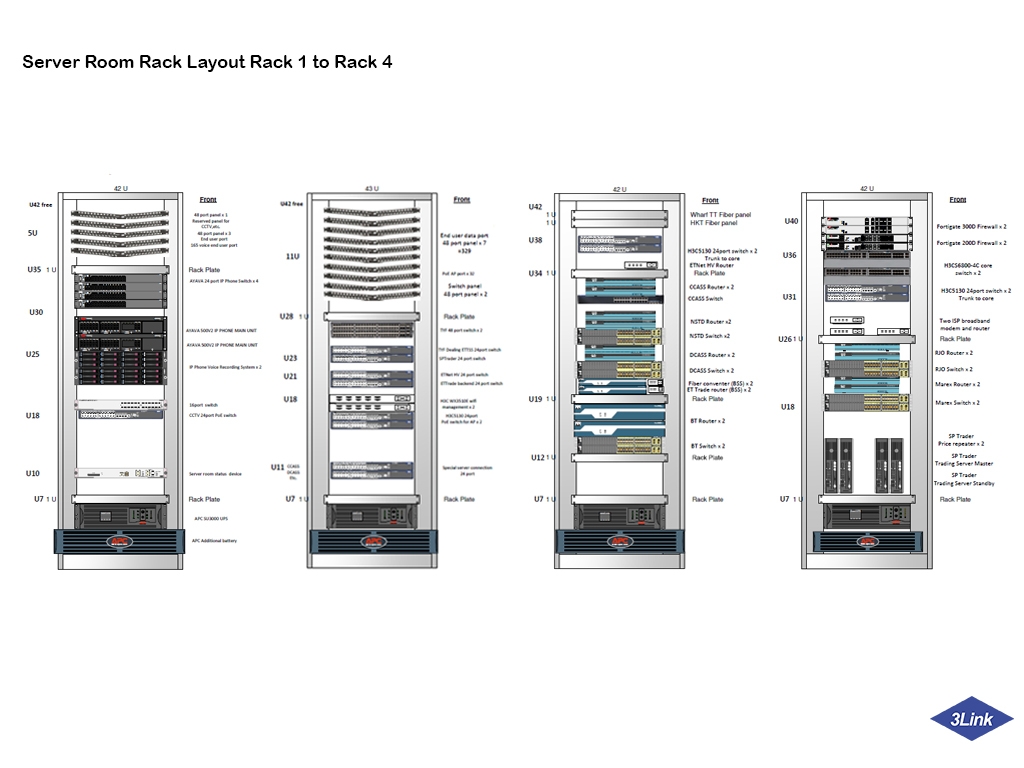

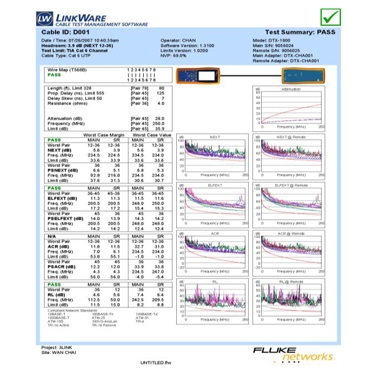

Structure Cabling Reporting and Documentation

3Link provides a cabling system that devoid of dependence on telecommunication applications or vendors. We consider other telecommunications systems for inclusion in the voice/data cable system design. 3Link divides the entire system into sub-systems (horizontal, backbone, and system) and addresses each individually, which collectively forms a system fully fulfills the criteria above, and more.


3Link provides a cabling infrastructure that will meet today's needs and allow a graceful migration to satisfy the needs of tomorrow. However, to facilitate the day-to-day operations of a normal office environment, it must enable our clients to add, move and change the link wherever and whenever necessary.

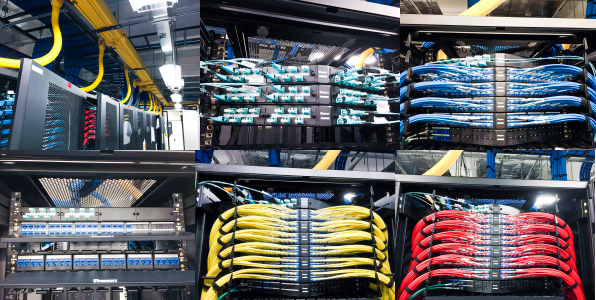

Self Photos / Files - server rack - Website

Self Photos / Files - 2

Cabling Systems

Self Photos / Files - Bohai-77Self Photos / Files - Bohai-74

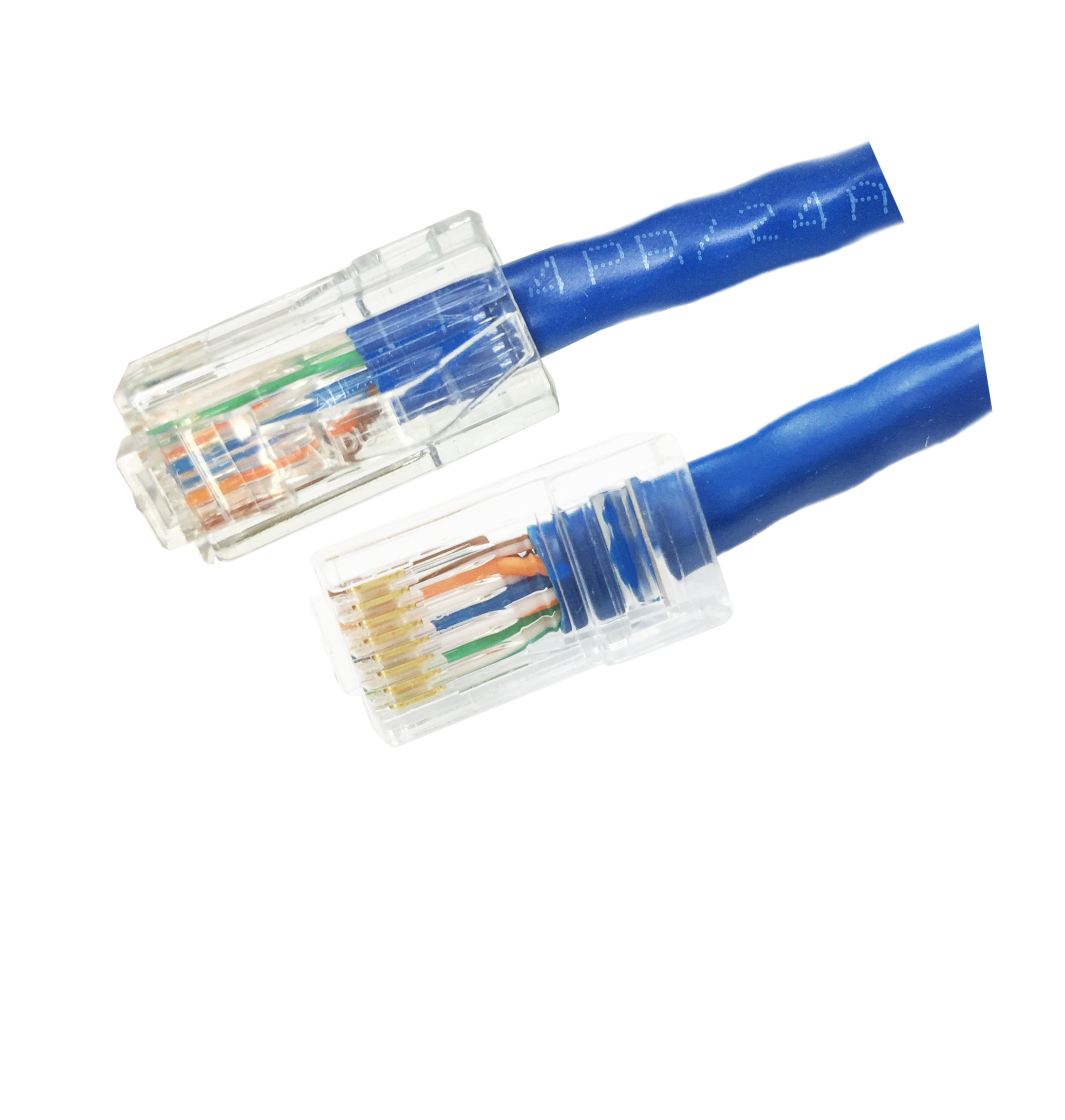

Category 5e Structured Cabling

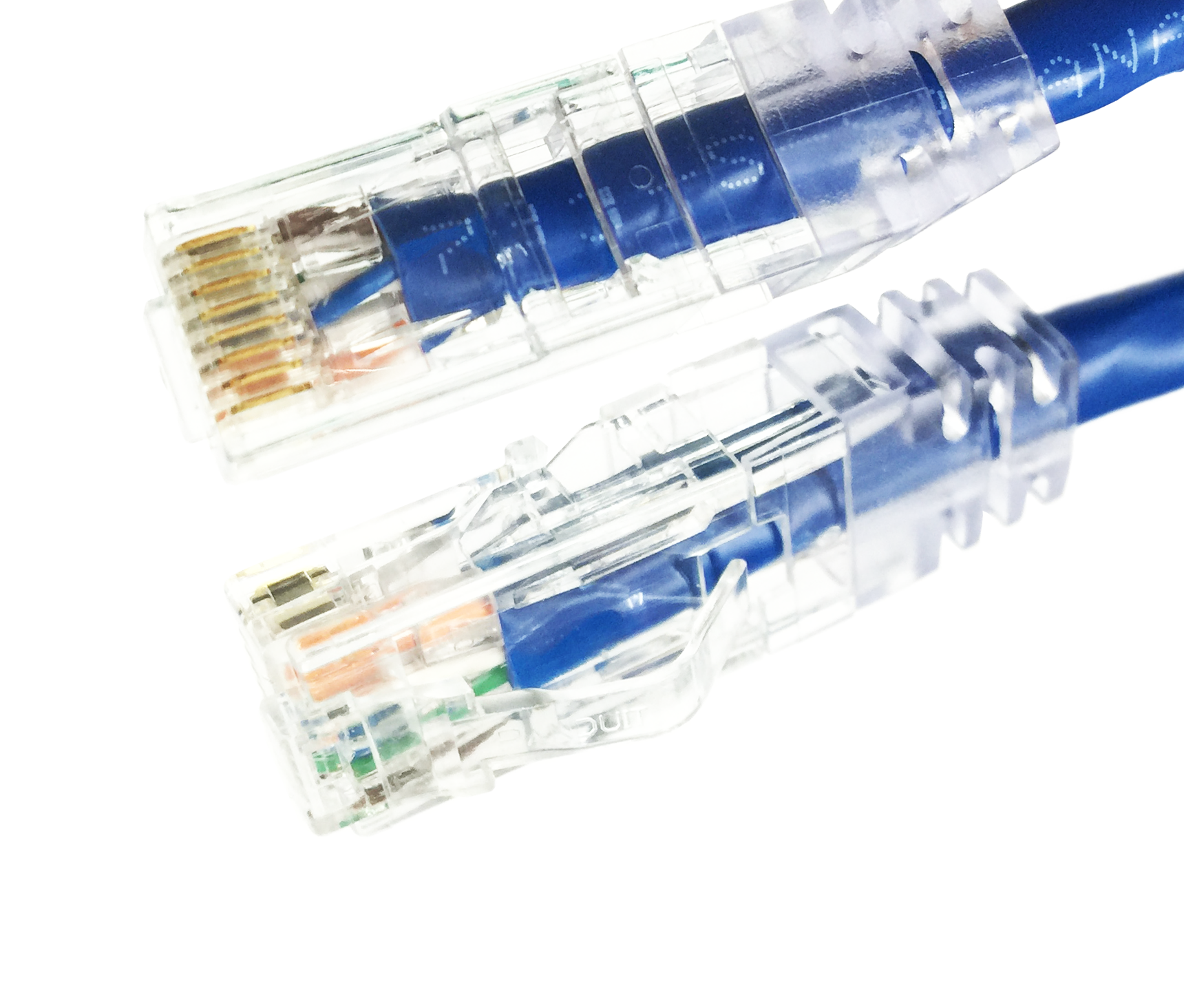

Self Photos / Files - Cat5e

Cat 5e Solutions are capable to carry up to one Gigabit of data per second over an Ethernet channel, making it the ideal solution for today's small to medium-sized companies.


Category 6 /6A Structured Cabling

Self Photos / Files - Cat6

Category 6 is considered to be the best horizontal solution for most enterprise by combining high performance for today, room for growth tomorrow, and high reliability and efficiency. The range of systems include 10Gigabit solutions offering bandwidth up to 500MHz with extensive headroom on channel performance.

Recommended uses:

  • Typical 5-10 years building life
  • Typical enterprise applications - Fast Ethernet & Gigabit Ethernet
  • 10Gigabit variants for high data environments and datacentres
  • Where reliability is considered vital for business
  • Typical office or indoor light industrial environments

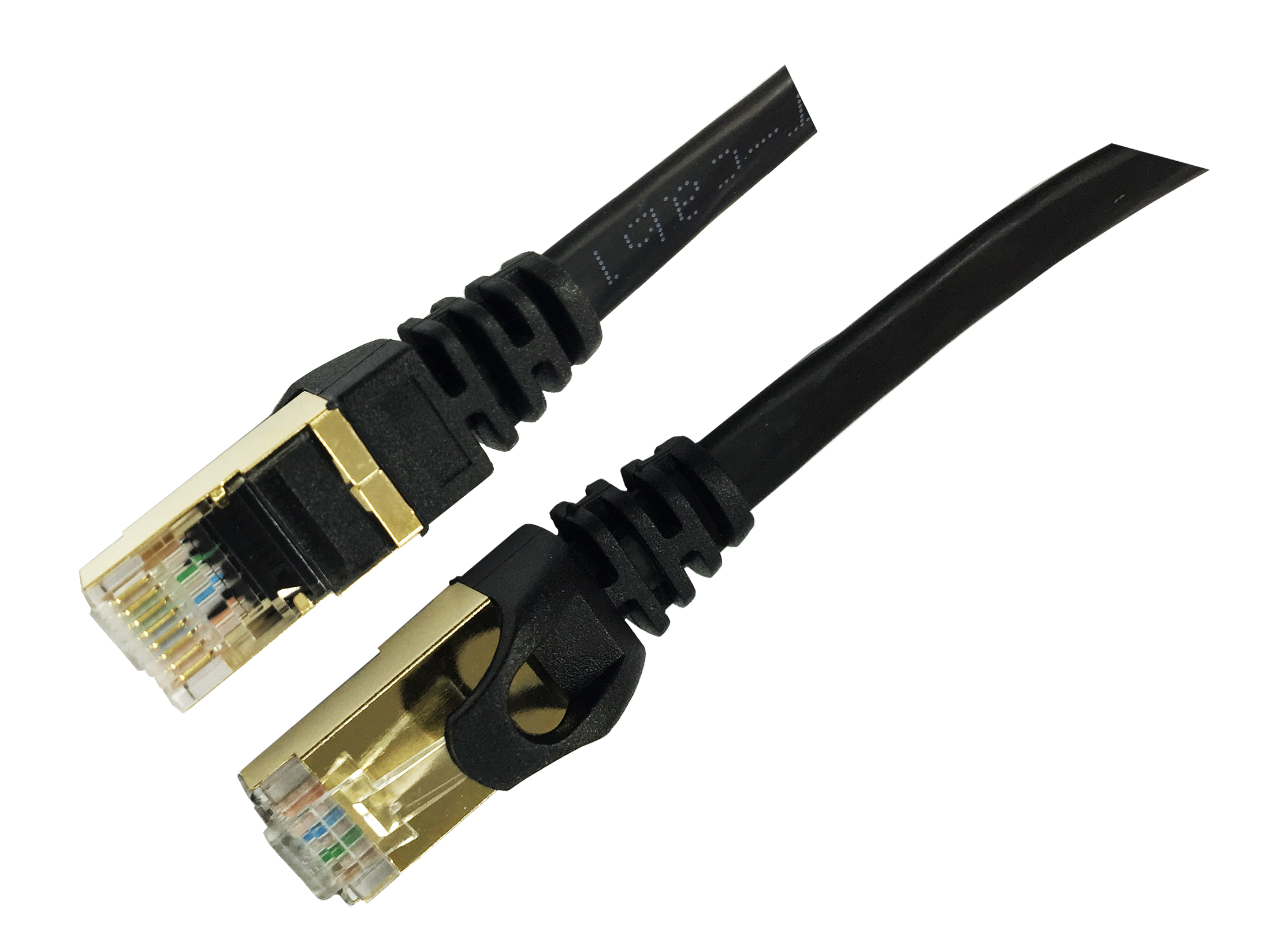

Category 7 Structured Cabling

Self Photos / Files - Cat7

Category 7 is the highest performance standard compliant, copper solution available in the market. This Category solution provides backwards compatible to perform beyond 1000MHz and features the revolutionary GG45 connector.

Recommended uses:

  • Very long lifetime needs (>15years)
  • Composite analogue & high speed digital data
  • Multiple service applications (voice, data, video using different pairs in the same cable)
  • Very high electromagnetic noise environments
  • Installations where the replacement cost is very high (e.g. ships etc.)

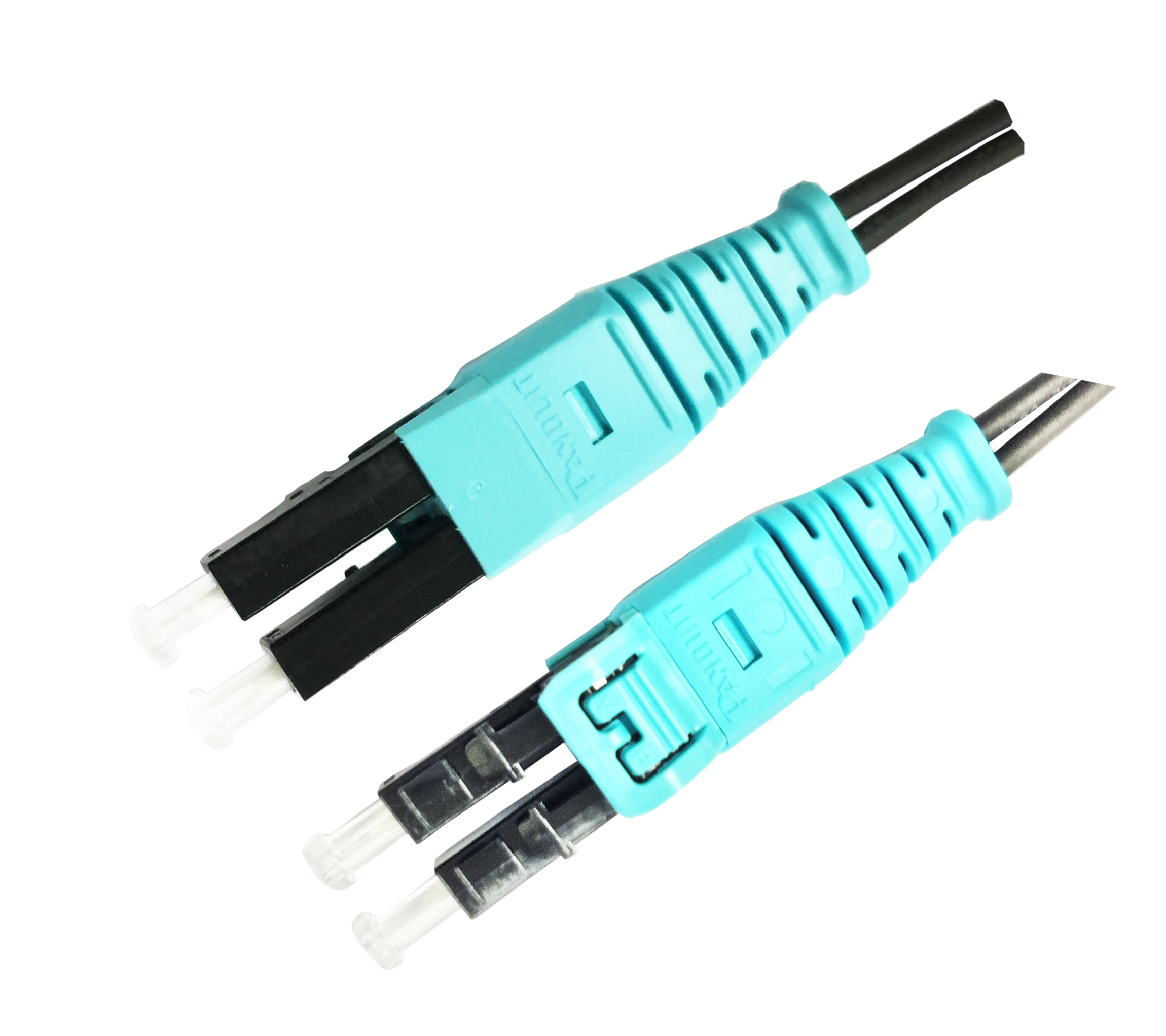

Optical Fibre

Self Photos / Files - Fiber

There are wide applications for Fibre Optic cabling; its use is increasing due to the evolve of bandwidth hungry data networks. As the increases in user numbers and bandwidth requirements in the copper data network, so the Fibre backbone cabling is often over looked resulting in decreasing network performance. We can survey, test performance, specify and install the correct Fibre Optic cable to your requirements. Fibre to the desk is a way of future proofing your network cabling and offers a competitive Fibre communication solution for internal Fibre Optic networks. Our engineers are Fibre Optic cabling specialists and are able to carry out Fibre Optic network installations of tight buffered and loose tube Fibres internally  and externally by using either direct or fusion splice terminating techniques.


  • In the backbone or to the desk, optical networks achieve peak performance with fibre, connectors, patch cords, raceways, and panels featuring integrated cable management and bend radius protection.
  • Inter/Intra-building Block Wiring Solution
  • Cabling Re-Patching Service
