Electrical System

We understand that the Electrical System is a significant part of the Server Room. We are determined to provide a stable, secure, resilient, reliable and cost Effective solution to the every customer.



Our professional technicians will estimate each customer potential electric usage for each server room and will conduct a diagram according to the customer's requirements in order to maximize efficiency, allow expansion and adaptation in the long run.

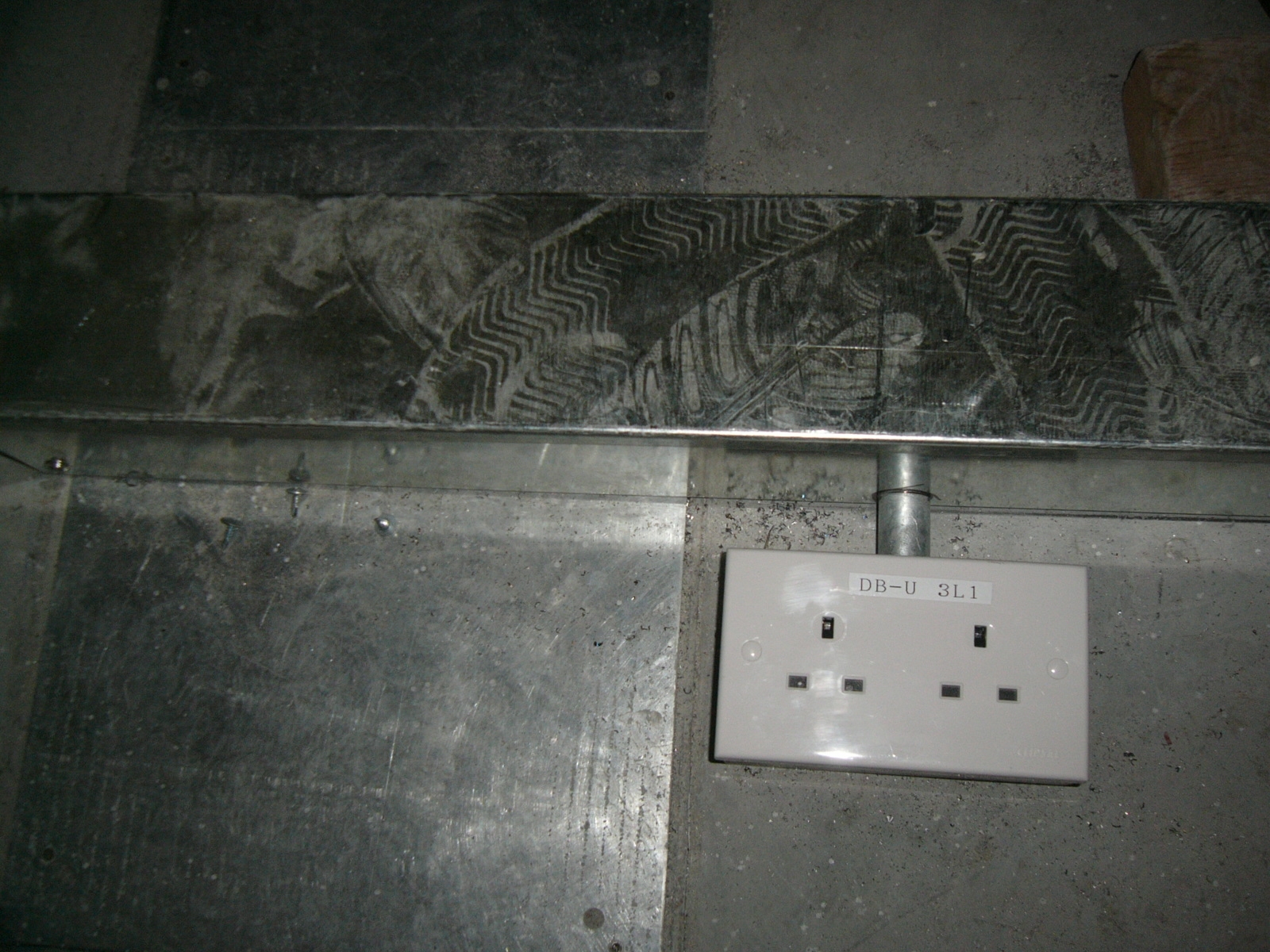

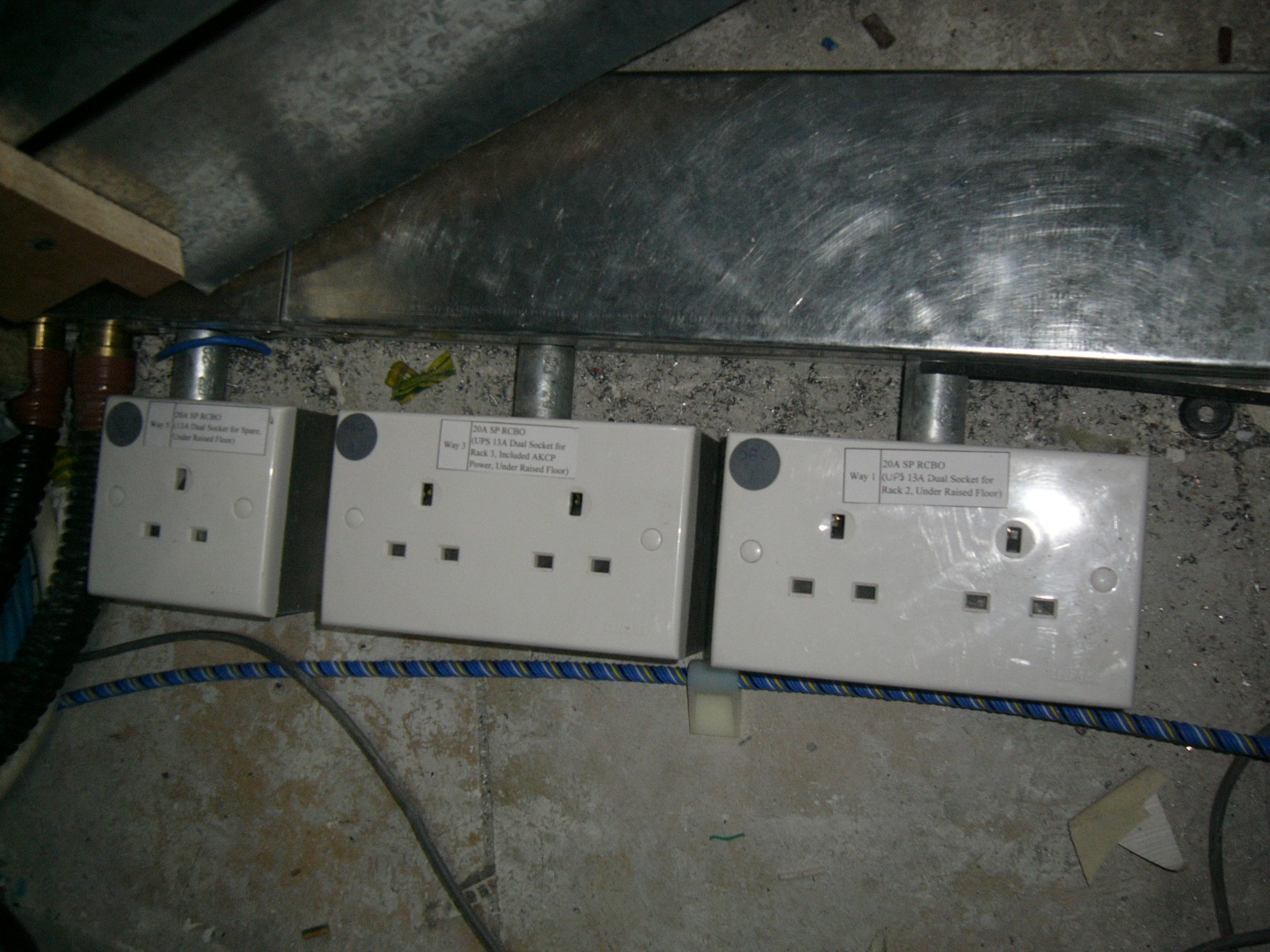

Power cables and sockets:

13A dual sockets are built and power cables are located for later UPS installation.

Self Photos / Files - 3  Self Photos / Files - 23  Self Photos / Files - 26

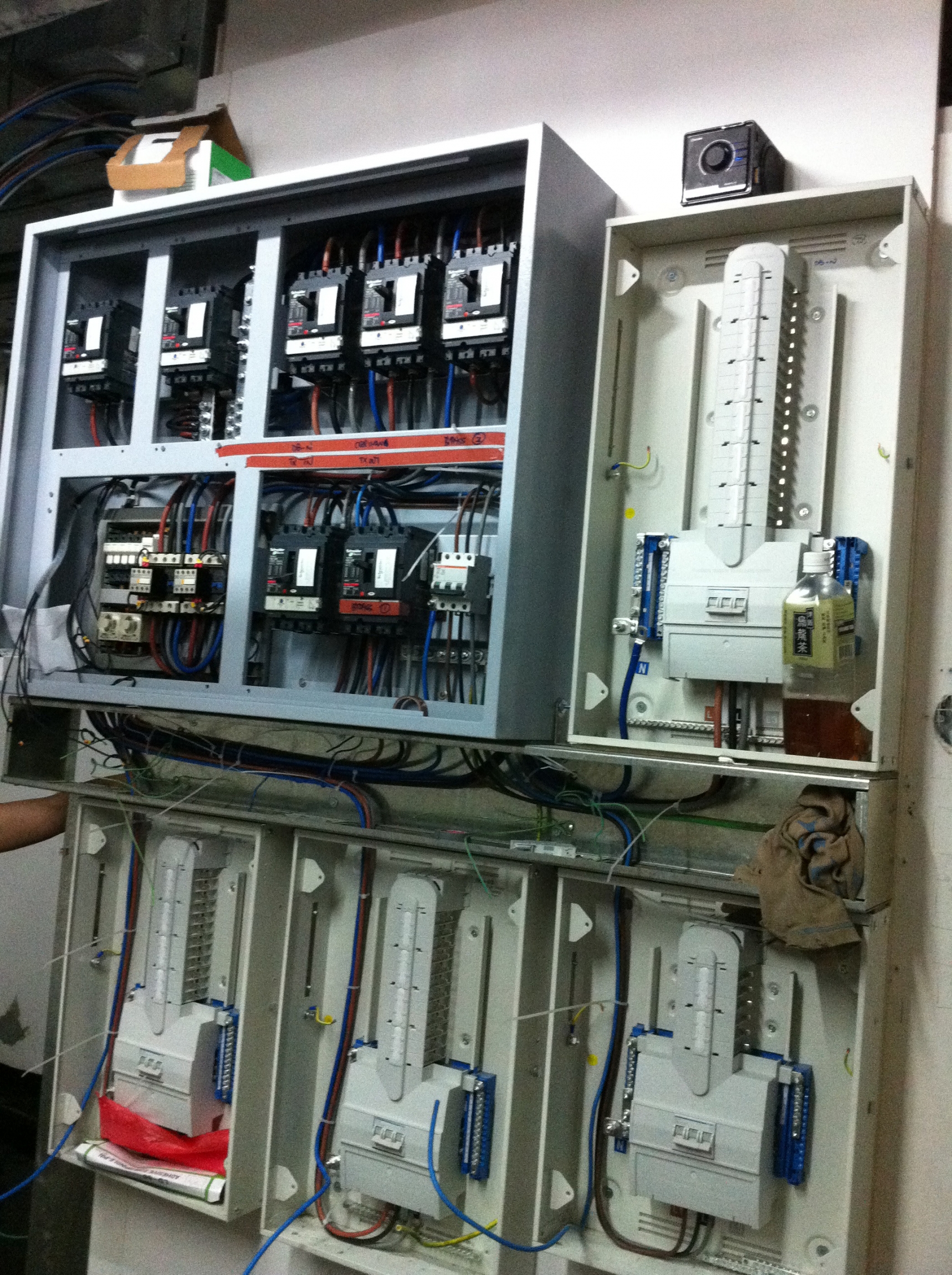

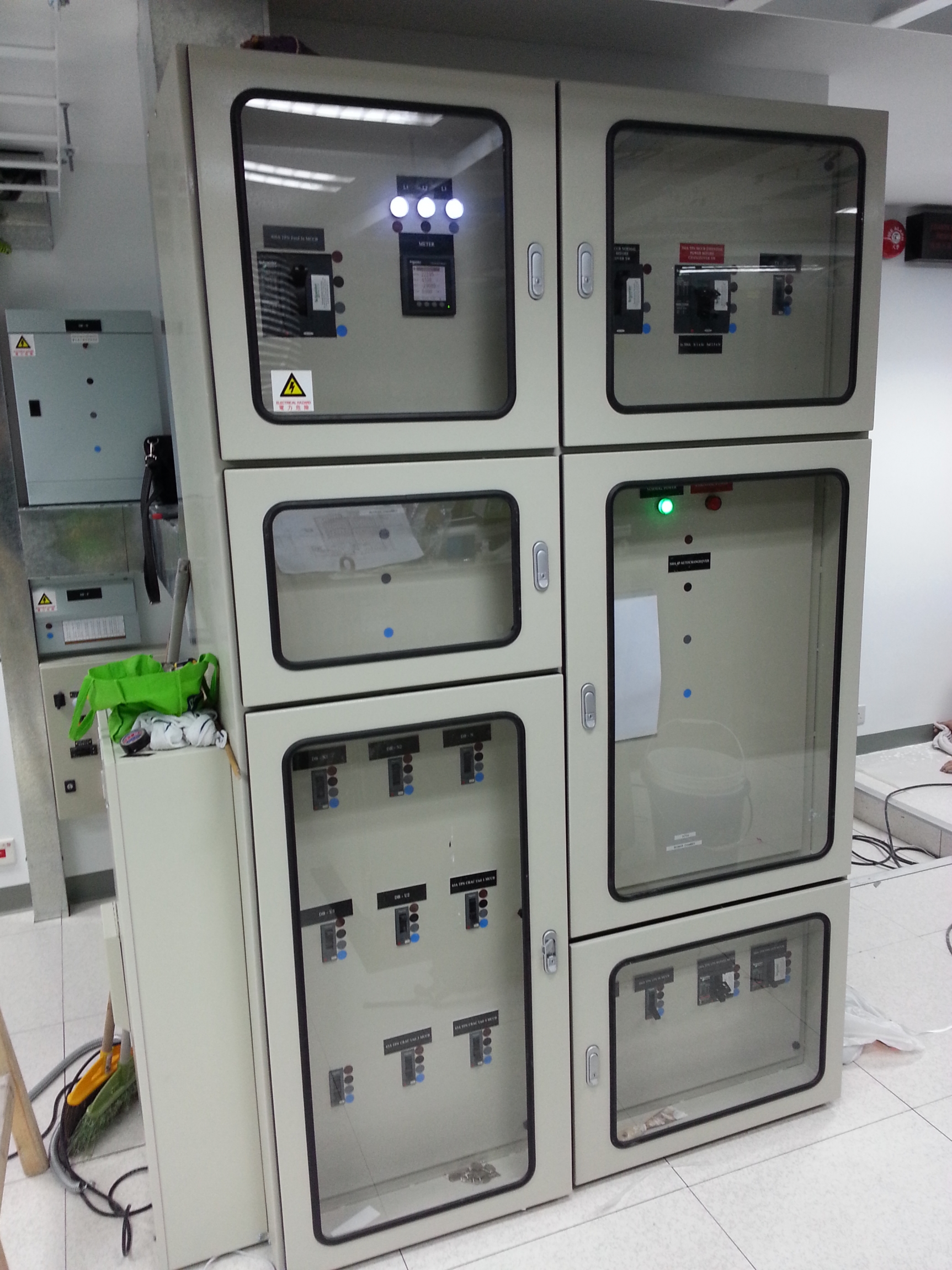

Electrical Distribution Boxes

Electrical boxes will be installed including:

  • Main Power Distribution Unit
  • Sub Power Distribution Unit
  • UPS Bypass Unit
  • Emergency power auto change-over

Self Photos / Files - 2  Self Photos / Files - 9



UPS Emergency Power Off (EPO):

Emergency Power Off button will be installed near main entrance for emergency electrical power cut off.

Self Photos / Files - 25  Self Photos / Files - 1



MCB

MCB board with main switch to control all electrical equipment's in server room.

Self Photos / Files - 8

UPS Power Distribution Units

  • Main power from building through main power distribution unit.
  • Connected with UPS bypass unit
  • UPS provide electrical power to sub power distribution unit to electrical appliances.

Self Photos / Files - 22

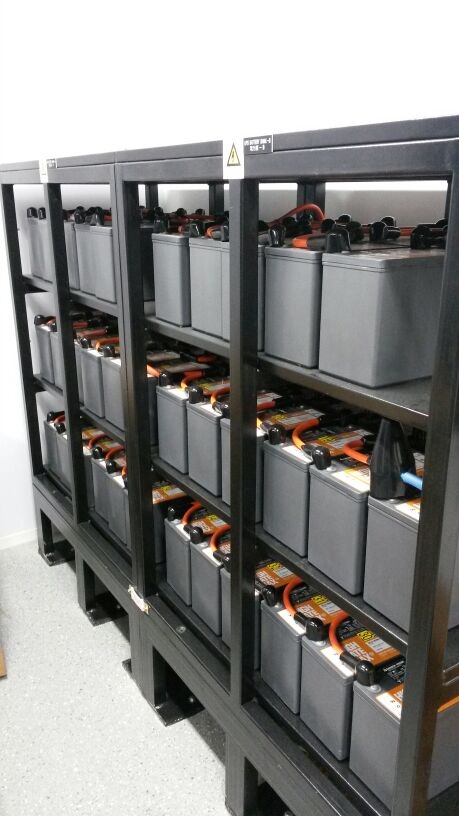

Battery Cabinet and Batteries Installation

  • Supply and install batteries inside the battery cabinet.
  • Cables are connected in groups and finally connected to main UPS system.

Self Photos / Files - 21

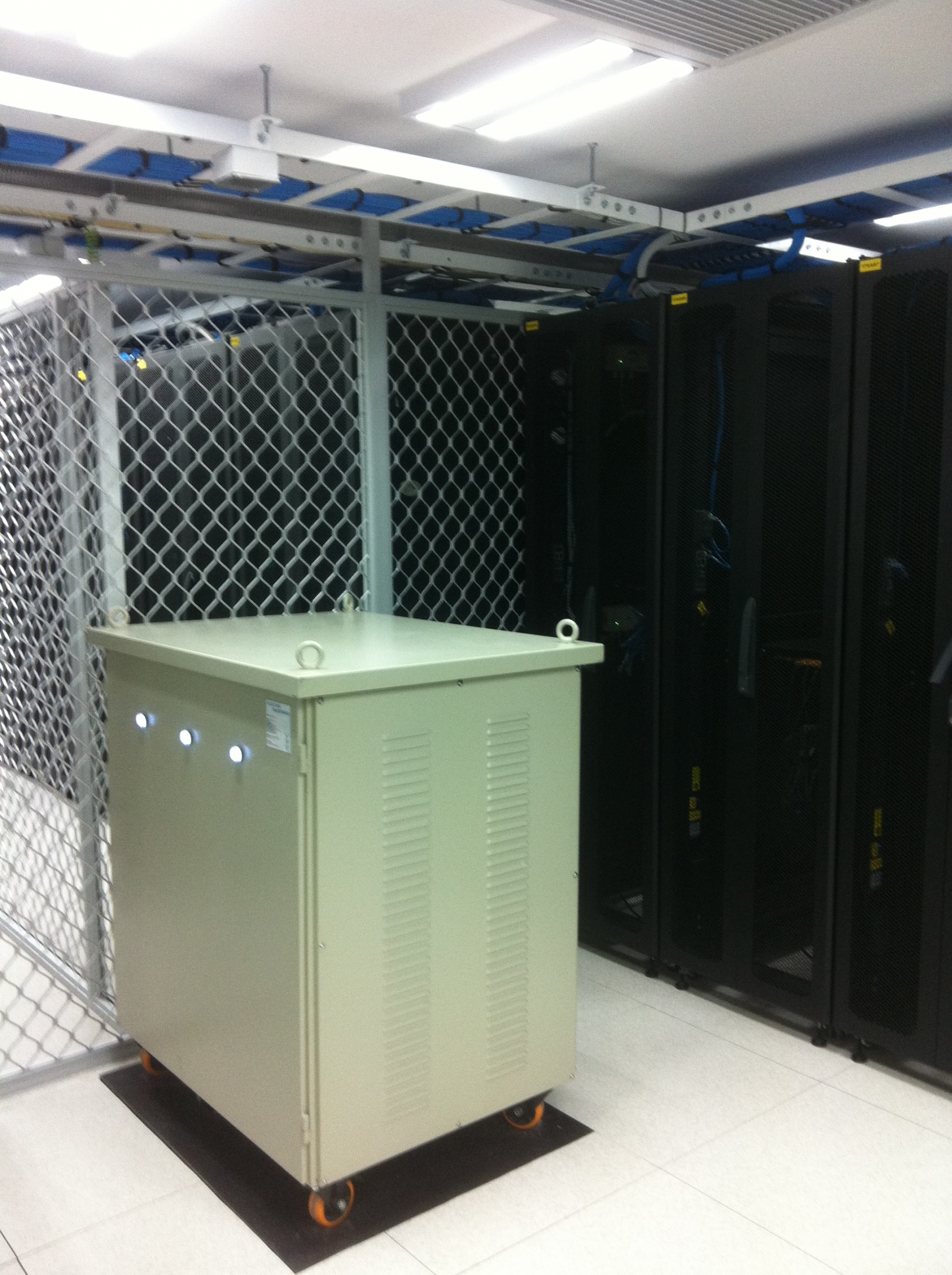

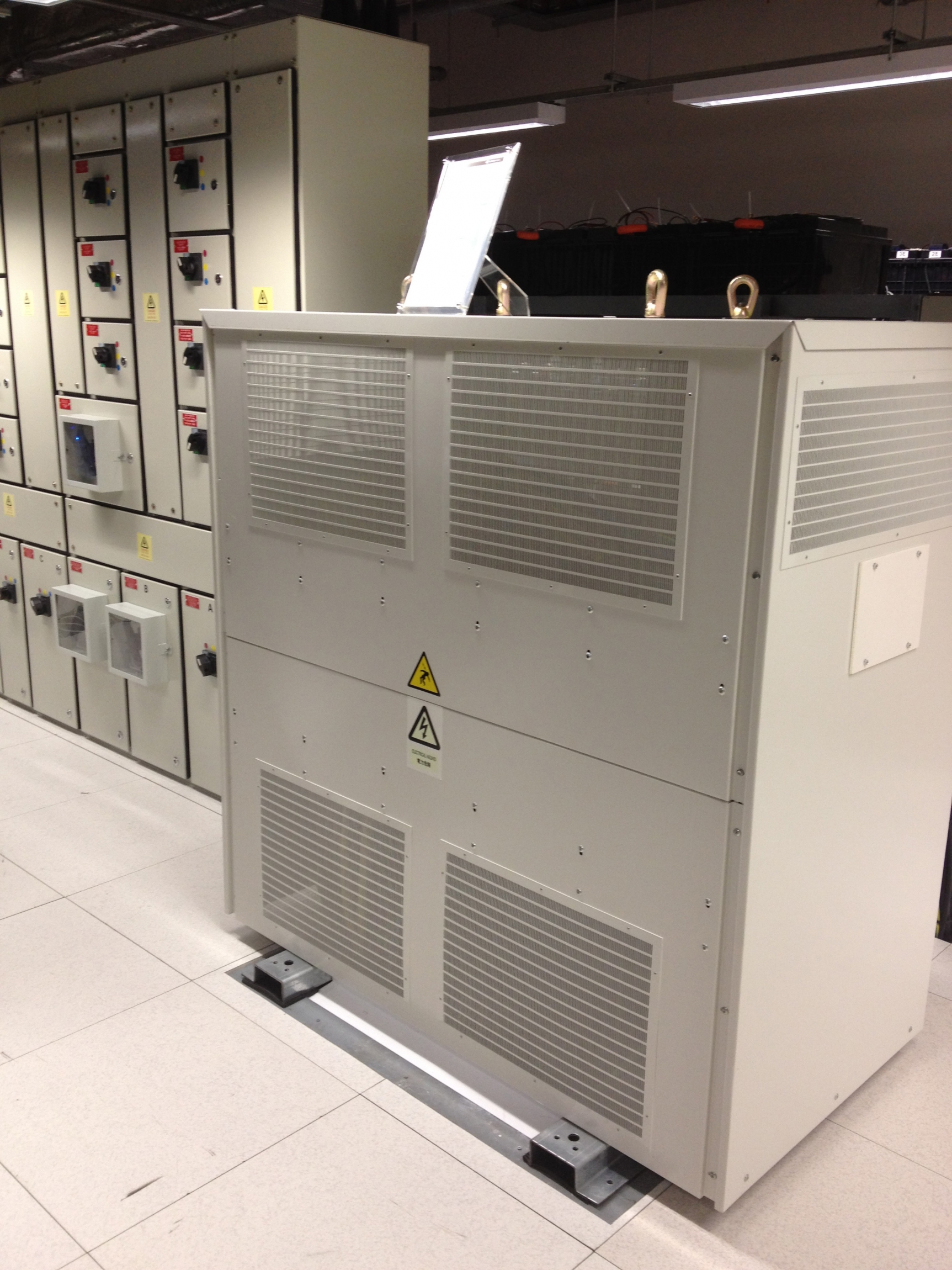

Isolation Transformer

Installation of isolation transformer for additional protection to the electrical system when emergency power is used.

Self Photos / Files - 14  Self Photos / Files - 18
