Server Room Monitoring

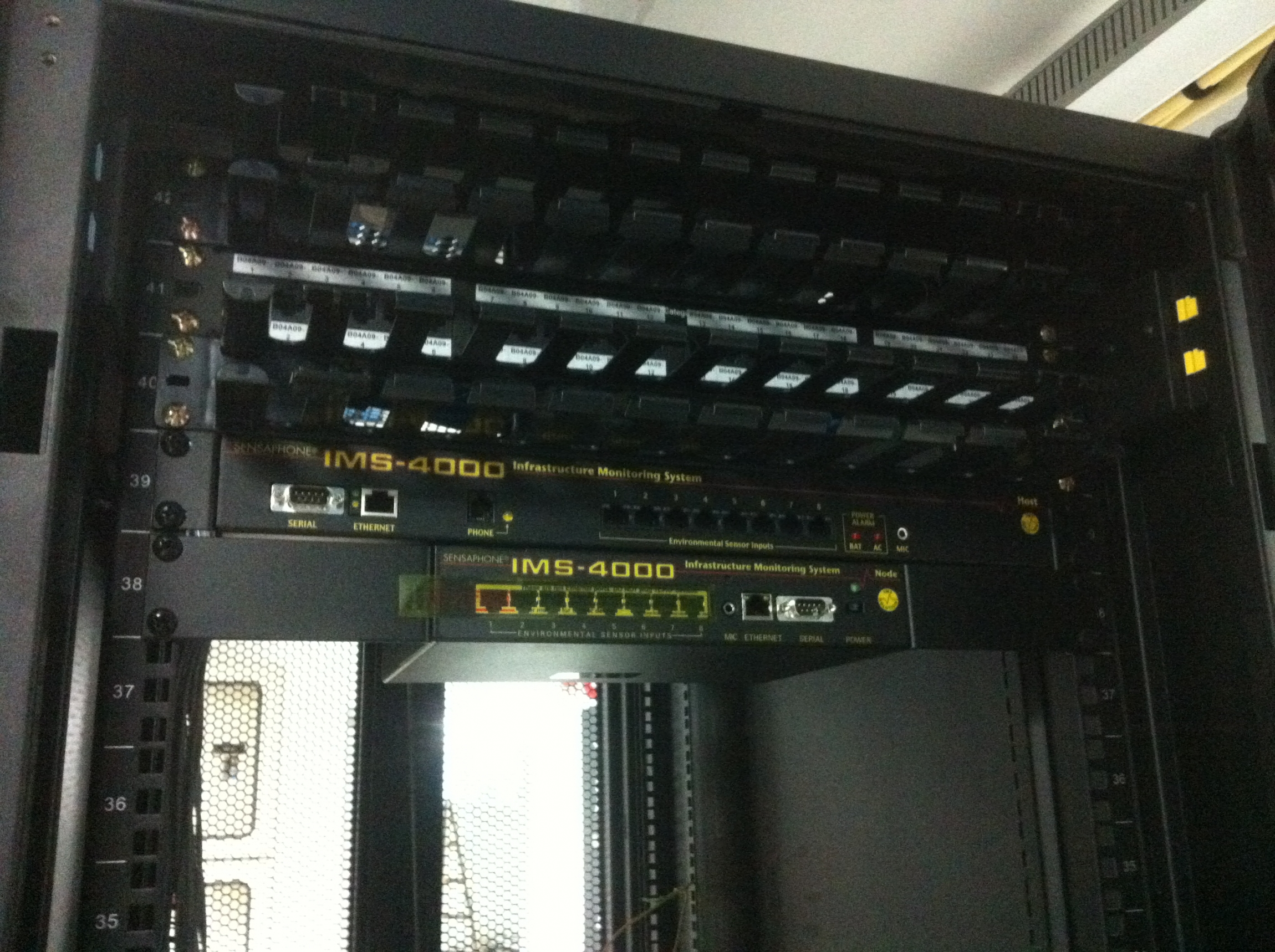

3Link provides Sensaphone IMS-4000 Monitoring System for Server Room Monitoring.

Self Photos / Files - 1



  • Environmental Monitoring

To monitor critical environmental conditions, each IMS-4000 host and node can support up to eight Environmental Sensors as:

  1. Temperature
  2. Humidity
  3. Smoke
  4. Sound Level
  5. Motion
  6. Water
  7. Intrusion
  8. Power Outages

When a sensor exceeds the threshold configured, the customers are notified by the IMS-4000.

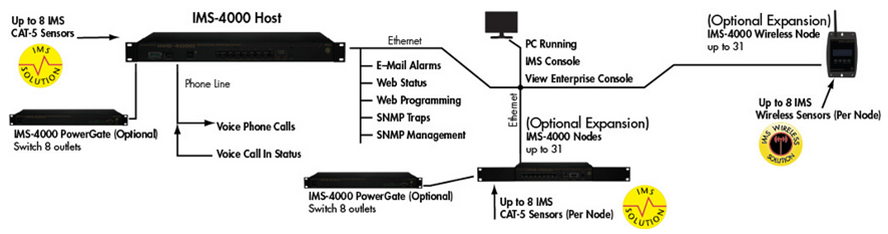

  • IP Monitoring

The IMS-4000 monitors IP Devices through pinging and port availability. When a network component is not available, the IMS-4000 notifies the user which IP device is unavailable. Each IMS-4000 Host and Node can monitor up to 64 devices. When a device does not respond to the IMS query, it contacts the user immediately for the situation.



  • Notification

When there is a network problem,  the IMS-4000 will notify the problem of the problem. Multiple communication interfaces- Ethernet port and standard telephone interface-the user receives notification before a problem turns into a disaster.

Self Photos / Files - 7

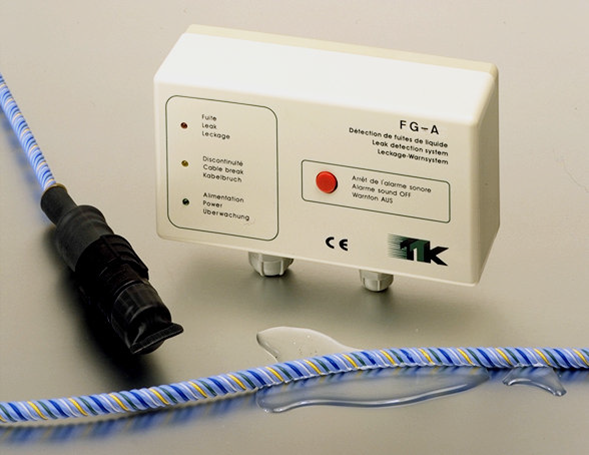

  • Water Detection System

The leak signal (red diode goes on ) indicates the system detects a liquid leak.

The continuity signal (yellow diode goes on ) indicates the system detects a circuit interruption.

The power supply signal (green diode on ) indicates the system is in normal operation.

The button is used to stop the audible alarm triggered in case of fault.

Self Photos / Files - 2
